The Concave Wrap Canopy

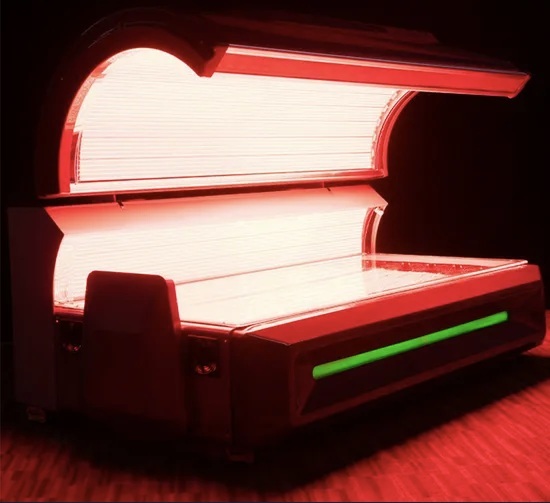

The defining engineering feature of the M6N is its upper canopy geometry. Where most RLT beds use a flat or gently curved clamshell lid that sits directly above the user, the M6N uses a deep concave contour that wraps closely around the body.

The practical effect is significant. A conventional flat canopy positions its LEDs at a uniform distance from your chest — but that distance increases sharply toward the sides of your torso and shoulders, meaning those areas receive considerably less energy per square centimetre. The M6N’s wrap design maintains a consistent LED-to-skin distance across your chest, the sides of your torso, and your shoulders simultaneously. The result is genuine full-coverage output, not just a strong result for whatever sits directly beneath the canopy centre.

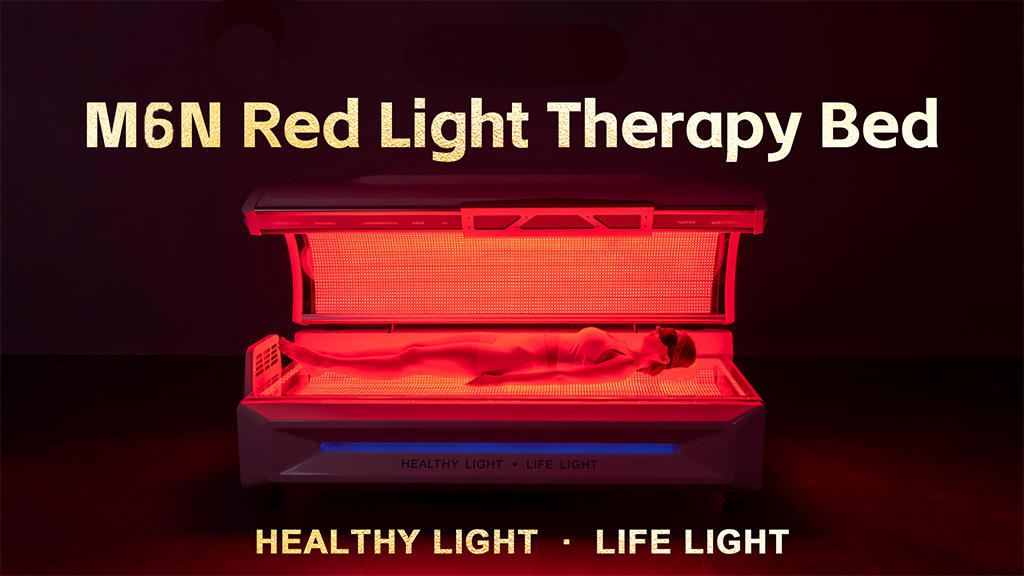

18,720 LEDs. 4,000 Watts.

The M6N houses 18,720 individual LEDs in a fixed high-density configuration. Operating at 4,000 watts of total power, this places it firmly in the heavy-duty commercial bracket — built to maintain consistent output across multiple sessions per day, every day, without degradation in power delivery or wavelength accuracy.

The LED arrays are mounted on specialised heat-dissipating boards engineered to keep operating temperatures stable. This matters because LED wavelength output drifts when a board overheats. The M6N’s thermal management ensures the red and near-infrared light you receive in session fifty is spectrally identical to session one.

The acrylic panels are UK Lucite® — rated at 99% light transmittance — ensuring virtually no energy is lost between the LEDs and your skin. LED chips are Epistar® (Taiwan), a tier-one manufacturer used across professional medical and wellness equipment globally.

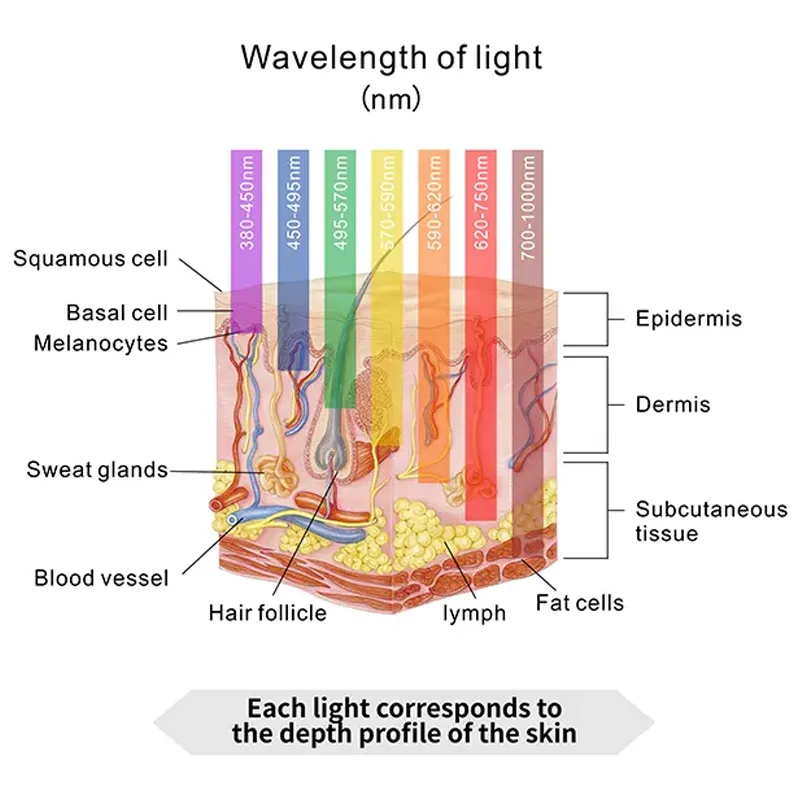

The 4-Wavelength Spectrum & Tissue Penetration

The M6N combines visible red light and invisible near-infrared (NIR) light across four specific wavelengths — each calibrated to a different biological target. Unlike devices that use a single wavelength or a generic “red + NIR” blend, the M6N addresses tissue from the outer surface of the skin down through muscle, joints, and deeper structural tissue simultaneously.

 630 nm — Visible Red (Surface to Shallow Dermis)

The 630 nm wavelength is absorbed in the upper layers of the skin — the epidermis and upper dermis. Because it has a shorter wavelength, its energy is concentrated entirely at surface level. It stimulates fibroblasts to produce collagen and elastin, improves skin texture, minimises fine lines, and accelerates surface-level healing. This is the pure aesthetic and skin-rejuvenation channel.

810 nm — Near-Infrared (Dermis to Blood Vessels)

810 nm is heavily regarded in clinical research for its affinity with cellular pathways and blood vessels. It passes through the skin barrier with minimal scattering and targets systemic circulation, reducing deeper inflammation, and supporting nerve recovery. Where 630 nm works on the surface, 810 nm works on the system.

850 nm — Near-Infrared (Deep Muscle & Joints)

850 nm penetrates deeply into the subcutaneous fat layer, muscle fascia, and joint structures. It is the primary wavelength responsible for accelerating sports recovery, clearing lactic acid accumulation, and addressing structural joint discomfort. If the goal is muscle recovery or joint pain management, this is the workhorse wavelength.

940 nm — Near-Infrared (Deepest Tissue & Microcirculation)

940 nm provides the deepest penetration of the four. It pushes into deep tissue and fluid systems, enhancing localised microcirculation and metabolic waste clearance at the foundational cellular level. It completes the spectrum by reaching the tissue structures that the other wavelengths cannot.

The Cellular Mechanism: Photobiomodulation

The M6N does not produce results through heat. It works through photobiomodulation (PBM) — a photochemical reaction triggered at the mitochondrial level when red and NIR photons enter the cell.

Inside the mitochondria sits an enzyme called Cytochrome c Oxidase (CCO) — the key enzyme in cellular energy production. In stressed or fatigued cells, harmful nitric oxide molecules bind to CCO and block it, effectively halting the cell’s ability to produce energy. Red and NIR light at the correct wavelengths displace that nitric oxide from the enzyme.

Once CCO is unblocked, the mitochondria can process oxygen efficiently again. This triggers a significant increase in the production of Adenosine Triphosphate (ATP) — the energy currency that every cell in the body relies on to function, repair, and regenerate.

The result is a cascade effect: with cellular energy production restored and amplified, the body gains the fuel it needs to repair cellular damage, reduce systemic inflammation, and rebuild tissues at an accelerated rate. This is why RLT benefits compound over a course of sessions rather than being limited to a one-off effect.

The M6N delivers a maximum irradiance of 120 mW/cm², fully adjustable. A standard 10-minute session at this level delivers approximately 60 J/cm² — a therapeutic dose sufficient to push energy deep into the target tissue layers rather than being absorbed entirely in the outer skin.

Independent Wavelength Control

The M6N allows each wavelength channel to be controlled independently. The visible 630 nm red light can be dimmed or switched off entirely if a client wants a deep-tissue NIR recovery session without surface skin stimulation — for example, to avoid light sensitivity around the eyes or face. Conversely, the NIR channels can be dialled back for a session focused purely on skin aesthetics and anti-ageing. The pulse frequency and duty cycle are separately adjustable, allowing irradiance output to be tuned without changing the wavelength configuration.

Pulse Frequency Modulation (PFM) is configurable up to 50,000 Hz, controlling how rapidly the LEDs cycle on and off per second. Different frequencies interact with mitochondria in different ways — lower frequencies are associated with relaxation and anti-inflammatory effects, while higher frequencies are used to drive deeper tissue penetration and recovery.

Duty Cycle is adjustable from 0–100%, determining what proportion of each pulse cycle the LEDs are active. The M6N also features Bluetooth surround sound, a delayed fan-cooling cycle that protects the LEDs and electronics after each session ends, and full compatibility with commercial remote management and IoT salon software for scheduling and multi-bed monitoring.

What Red Light Therapy Does

Red and near-infrared light therapy works at the cellular level by stimulating mitochondrial activity — the process by which your cells produce energy (ATP). When this process is amplified, a cascade of physiological effects follows. The below are the most consistently documented outcomes across clinical literature:

Skin Health & Collagen

Red light at the appropriate wavelengths stimulates fibroblasts — the cells responsible for collagen and elastin production. Regular sessions are associated with measurable improvements in skin tone, texture, and elasticity, and reductions in fine lines and superficial wrinkles. This is the same mechanism used in clinical dermatology LED treatments.

Inflammation & Recovery

Near-infrared light penetrates beyond the skin to reach muscle tissue, joints, and tendons. At this depth it reduces oxidative stress and supports the reduction of inflammation. Athletes and active individuals use RLT specifically to accelerate recovery from training, reduce delayed-onset muscle soreness, and manage chronic joint discomfort.

Circulation & Cellular Energy

Improved mitochondrial function means more ATP produced per cell. Increased cellular energy production supports improved local circulation, faster tissue repair, and a general sense of improved wellbeing. These effects are cumulative — building meaningfully over a course of regular sessions rather than being limited to a single visit.
